AC adapter. switching power supply. laptop chargers, 150W robot power supply, AC adapter 150W adapter switching power supply

Model number DYS6150-2400600W
Brand DYS
Origin China
small orders Accepted

Key Specs/ Special Features:

Large power supply with 150W specifications
  • Grab:
    • Voltage: 100-240 VAC (full range), 50/60 Hz
    • Current (rms): 1.5 A at 90 VAC, 0.75 A at 264 VAC maximum

Production:

  • Voltage range: 9 – 48 V DC
  • Voltage regulation ±5% in constant voltage mode
  • Current range: 1.0-7.5A
  • Maximum power (Po): 96W maximum

Protections: overcurrent, overvoltage and short circuit
Energy saving:

  • CEC DOE MEPS Efficiency Level V and ERP Level II

Environmental protection:

  • RoHS/HAP/REACH Compliant

Safety and EMC:

  • ETL, GS, BS, SAA, FCC, CE and C-tick

Operating temperature: 0 to 40°C ambient
Storage temperature: -20 to 80°C
MTBF: >50,000 hours at 80% load and 25°C ambient temperature
Weight: about 420g
Dimensions: 146 x 61.3 x 34.5mm

Product certificates

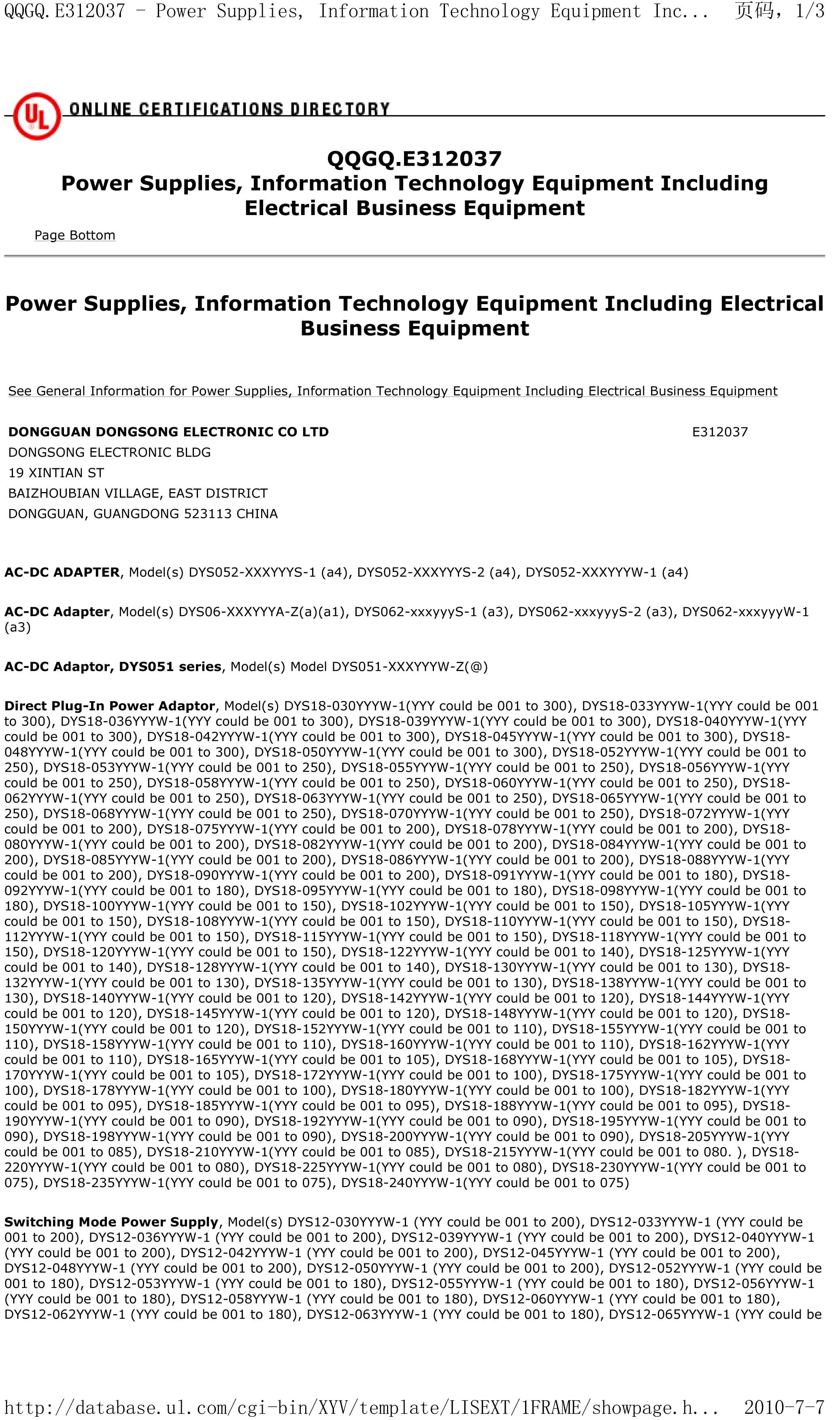

Certificate standard UL
Certificate Image

Click on the image to see a larger one

Certificate number E312037
Date of issue 2010/07/06
Issued by UL
Expiration date 2025/12/30
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number S50476888-DYS6150-GS
Date of issue 2020/08/10
Issued by TÜV
Expiration date 2025/08/09
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number 4789177765-2-DYS902
Date of issue 2019/08/25
Issued by UL
Expiration date 2025/12/29
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number UN 50450357-0001-LVD–DYS818
Date of issue 2019/10/28
Issued by TÜV
Expiration date 2025/10/28
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number RCM201901786-DYS902
Date of issue 2018/01/18
Issued by TÜV
Expiration date 2025/12/29
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number JD 50378015–DYS902
Date of issue 2019/05/16
Issued by TÜV
Expiration date 2025/05/16
Certificate standard
Certificate Image

Click on the image to see a larger one

Certificate number 2013010807646766
Date of issue 2018/10/10
Issued by CCQ
Expiration date 2023/10/10

To note: Not all certificate agents offer online search, and some have a time limit for issuing new certificates. If you can’t find a certificate online, contact the certifying agency or provider for further verification.

Delivery Information

FOB port Hong Kong SAR
Lead time 15–25 days
Weight per unit 0.66 kilograms
Dimensions per unit 175.0 x 100.0 x 45.0 centimeters
US HTS code 850.4.40
Units per export carton 20.0
Export Carton Dimensions 480 x 295 x 300 centimeters
export carton weight 13.20 kilograms

Main export markets

– Asia

– Australasia

– Central/South America

– Eastern Europe

– North America

– Western Europe

Download more information about this product
